Section : Troubleshooting

Symptom 1: Jack will not lift at its weight capacity

Solution 1:

Check release valve, bleed air

Solution 2:

Flush the valve

Solution 3:

Check oil level and refill, bleed air after refill

Symptom 2: Saddle lowers under load

Solution 1:

Check release valve, bleed air

Solution 2:

Flush the valve

Symptom 3: Pump stroke feels spongy

Solution 1:

Check oil level and refill, bleed air after refill

Symptom 4: Saddle will not lift all the way

Solution 1:

Check oil level and refill, bleed air after refill

Symptom 5: Handle moves up when jack is under load

Solution 1:

Flush the valve

Symptom 6: Oil leaking from filler plug

Solution 1:

Adjust oil level and bleed air

Section 2: Maintenance and Repair

Identify if Jack is low on oil

Add Hydraulic Oil and Bleed Air

Identify if A Jack Needs Air Bleeding

Air Bleeding Instructions

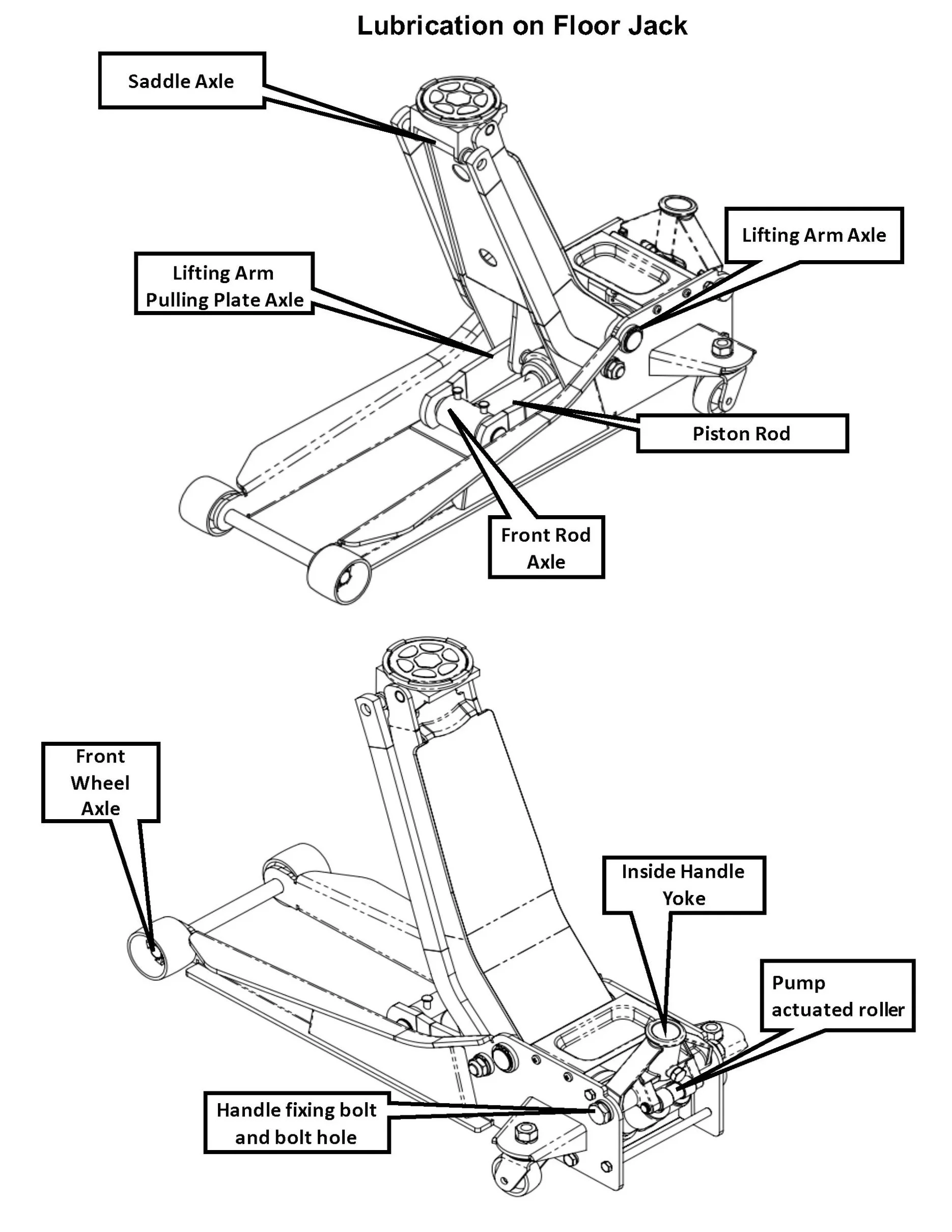

Floor Jack Lubrication Instructions

Pump Replacement

Part 1

Part 2

Part 2

Front Wheel Replacement

Swivel Caster Replacement

Saddle Replacement

If saddle pad uses slotted screws

Saddle Replacement

If saddle pad uses hex bolts

Saddle Pad Replacement

If saddle pad uses slotted screws

Saddle Pad Replacement

If saddle pad uses hex bolts
